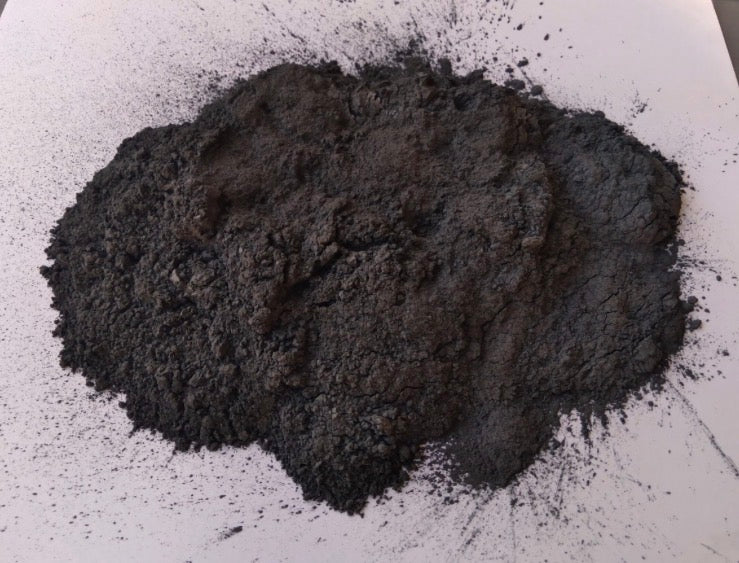

Dark Flake Aluminum Powder
100 Mesh / 100g
$22.02
Sale price
$22.02
Regular price
$42.02
Skip to product information
Shape: Irregular, flat, sheet-like micro-flakes rather than round droplets.
Particle Size (Diameter): Generally ranges from 5 to 100 microns across.
Thickness: Very thin, measuring between 0.1 and 1 micron.
Surface Area: High surface-area-to-volume ratio (often exceeding 20 m²/g)
Dark Flake Aluminum Powder
$22.02
Sale price
$22.02
Regular price
$42.02
This grade of Aluminum powder has been ball milled with the addition of 5% Willow Charcoal, added to the Pure Aluminum Metal quantity.
Equivalent in performance (@ 300 Mesh) to the “Eckart 5413”, “Super-H”, and “German Blackhead” Aluminum Powder products.
This products metal particles are thin, flat, and platelet-lIke in shape, referred to as “Flake” shaped, and the surface of the particles have been coated by a thin even layer of willow charcoal.
Flake particle powders differ from the more commonly found spheroidal (atomized) particle metal powders, in that Flake type particles have an extreme diameter-to-thickness ratio (roughly from 40:1 to 100:1), and a large surface area to mass ratio (> 10 m²/g).
Particle shape, in metal powder’s, is an extremely important variable because of its impact on a pyrotechnic compositions reactivity. Think about it. Which is easier to light, a 3 x 3-inch piece of paper or a 3 x 3-inch piece of plywood? Chemically they’re almost the same thing. But the little, bitty edge of the paper is a lot easier and faster to light than the edge of the plywood. And that’s what separates the flake particles, from the atomized and spheroidal, ease of ignition.
No matter what type of exothermic reaction you are trying to produce, success will depend (in part) upon selecting metal powder products with the right particle shape specifications.
No matter what type of exothermic reaction you are trying to produce, success will depend (in part) upon selecting metal powder products with the right particle shape specifications.
Physical Structure of Particles & Dimensions
**”Flake” shaped particle powders are required, for the production of exothermic/reactive (pyrotechnic) compositions, compounds, and mixtures.
Because of the ball mill production process we use, all Ivy Tech and Metal Works metal powders are composed of “Flake Particles”.
Mesh (Particle Size Grade): Denotes the particle size of the screen which that grade of powder was sieved through. “Mesh Number” is interpreted in relation of the characteristics of the sieving screen. The mesh number = the number of holes in a 1 inch by 1 inch square area of a given sieve screen.
(Example: A 100 mesh screen, has 100 holes per 1 inch square area.)
So a Metal Powder having a designation of 100 mesh, means that all particles larger than those that fall through a 100 mesh sieve screen, have been removed.
